Introduction: The Heart of Precision Cutting
In the realm of metal fabrication, the CNC (Computer Numerical Control) pipe cutter stands as a testament to technological advancement. This sophisticated tool is designed to provide precise cuts on pipes of various materials and sizes, revolutionizing the way metalworkers approach pipe cutting tasks.
1. The Framework: Stability and Support
At the core of every CNC pipe cutter is a robust framework, typically constructed from high-grade steel or aluminum alloys. This structural foundation ensures stability during operation, allowing the machine to withstand the forces exerted during cutting.

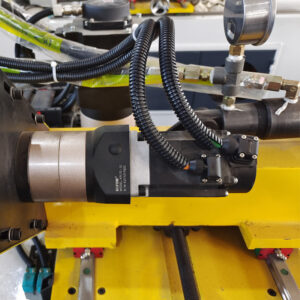

2. The Drive System: Powering the Cut
The drive system is the powerhouse of a CNC pipe cutter, responsible for propelling the cutting action. The motor, often a servo or stepper motor for precise control, converts electrical energy into mechanical motion. This motion is then transmitted through the gears and drive belt or chain to the cutting head, ensuring smooth and controlled movement along the pipe.
3. The Cutting Head: Precision in Action
The cutting head is the tool that does the actual cutting, equipped with a cutting wheel or blade designed to efficiently sever the pipe. These cutting tools are typically made from high-speed steel or carbide, chosen for their durability and sharpness.
4. The Control System: Brain of the Operation
The control system is the brain of the CNC pipe cutter, responsible for guiding the machine through complex cutting operations. The controller interprets the digital instructions from the user interface, such as G-code or M-code, and translates them into precise movements of the machine’s components.
5. The Conveyor System: Automation and Efficiency
Many CNC pipe cutters are equipped with a conveyor system that automatically feeds the pipe through the cutting head. This feature not only enhances efficiency by reducing manual handling but also ensures consistent cutting quality.
6. The Safety Features: Protecting the Operator and Machine
Safety is paramount in any industrial setting, and CNC pipe cutters are no exception. These features protect both the operator and the machine from potential hazards, ensuring a secure working environment.
Conclusion: The Future of Pipe Cutting
As the demand for high-quality metal fabrication continues to grow, the CNC pipe cutter stands as a pivotal tool, enabling metalworkers to achieve unparalleled results. With its sophisticated design and advanced features, it is clear that the CNC pipe cutter is not just a tool but a cornerstone of progress in the metalworking industry.
