Product Details

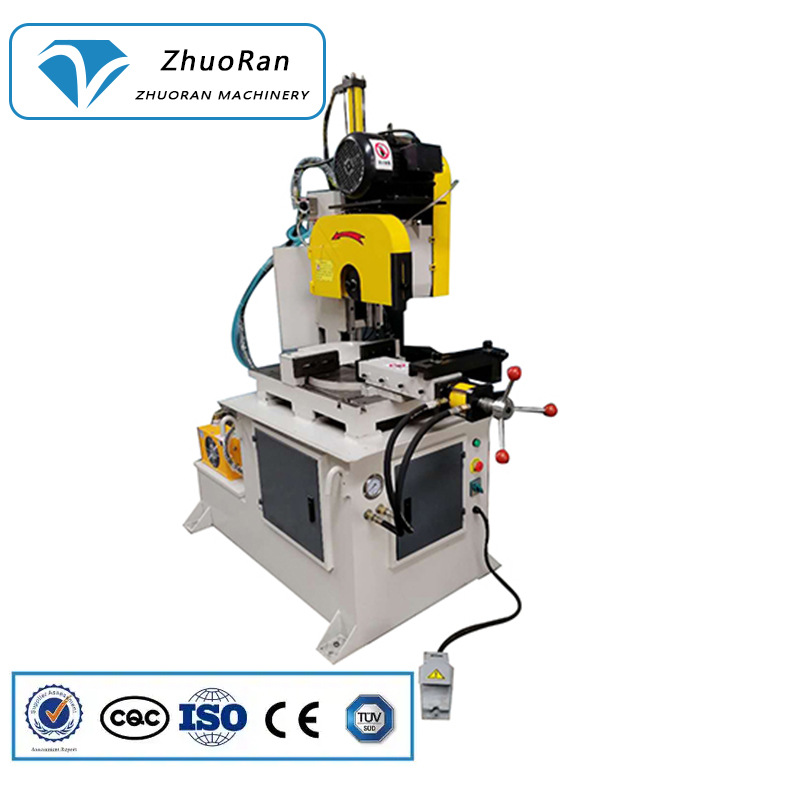

MC425NC
The MC425NC is a state-of-the-art machine designed for precision cutting, equipped with hydraulic automatic clamping and an automatic cutting device that enhances operational efficiency. The hydraulic clamping system ensures a secure grip on the workpiece, minimizing vibration and movement during the cutting process. This feature not only improves the accuracy of each cut but also contributes to the overall safety of the operation.
One of the standout advantages of the MC425NC is its versatility in sawing angles. Operators can easily choose from a variety of angles based on their specific requirements, allowing for customized cuts that meet diverse project specifications.
Machine type | MC425NC | ||||||||
Saw blade dia.(mm) | ¢300mm | ¢350mm | ¢400mm | ¢450mm | |||||
Cutting angle(°) | 45° | 90° | 45° | 90° | 45° | 90° | 45° | 90° | |
●(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
■(mm) | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | |
○(mm) | 70 | 80 | 80 | 95 | 115 | 125 | 130 | 140 | |
╚(mm) | 60×60 | 70×70 | 70×70 | 80×80 | 110×110 | 120×120 | 120×120 | 130×130 | |
□(mm) | 60×60 | 70×70 | 70×70 | 80×80 | 110×110 | 120×120 | 120×120 | 130×130 | |
Saw Blade Size
|
Diameter | HSSΦ315-Φ400mm | |||||||
Bore | Φ32mm | ||||||||
Pin Storke | 2*Φ11*PCD63mm | ||||||||
Main Driver Motor | 4.5/5.5KW | ||||||||
The oil pump motor | 2.2KW | ||||||||
Collant Pump Motor | 40W | ||||||||
Machine dimensions | 1700*900*2000 | ||||||||
Machine weight | 730kg |
