Product Details

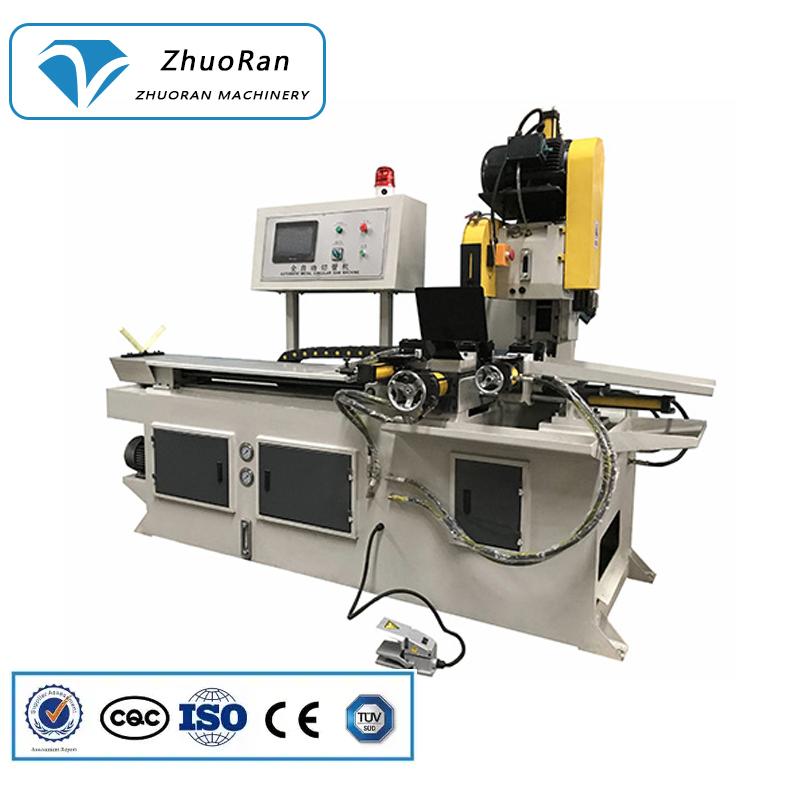

MC425CNC

The fully automatic CNC series metal circular sawing machine is an advanced piece of equipment designed for precision cutting in metalworking applications. Utilizing a servo motor for feeding, this machine ensures consistent and reliable performance, significantly enhancing the accuracy of each cut. With a feeding accuracy of up to ±0.05 mm, it delivers highly precise results, making it ideal for industries where tolerances are critical.

Equipped with a sophisticated PLC (Programmable Logic Controller) control system, the machine allows for easy programming and operation. This user-friendly interface enables operators to set parameters quickly, monitor performance in real-time, and make adjustments as needed.

Item/model MC315CNC MC350CNC MC425CNC
Main Driver Motor 2.4/3kw 4.5/5.5kw 4.5/5.5kw
Spindle speed 80/160RPM 60/120RPM 30/60RPM 60/120RPM
Clamping ViSe Left and right/up and down Left and right/up and down Left and right/up and down
Collant Pump Motor 40W 40W 40W
Maximum clamp 120mm 120mm 120mm


Saw Blade Size



Diameter Φ300mm Φ350mm Φ400mm
Bore Φ32mm Φ32mm Φ32mm
Pin Storke 2*Φ11*PCD63mm 2*Φ11*PCD63mm 2*Φ11*PCD63mm
Feeding Length



1200mm 1200mm 1200mm
Feeding Vise Servo motor Servo motor Servo motor
Servo motor power 1kw 1kw 1kw
Hydraulic Pump Motor Power 2.2kw 2.2kw 2.2kw
Maximum oil pressure 70kg 70kg 70kg


Machine dimensions(L×W×H)

2860*1100*2000mm 2860*1100*2000mm 2860*1100*2000mm
Machine weight 1200kg 1300kg 1400kg
