Product Details

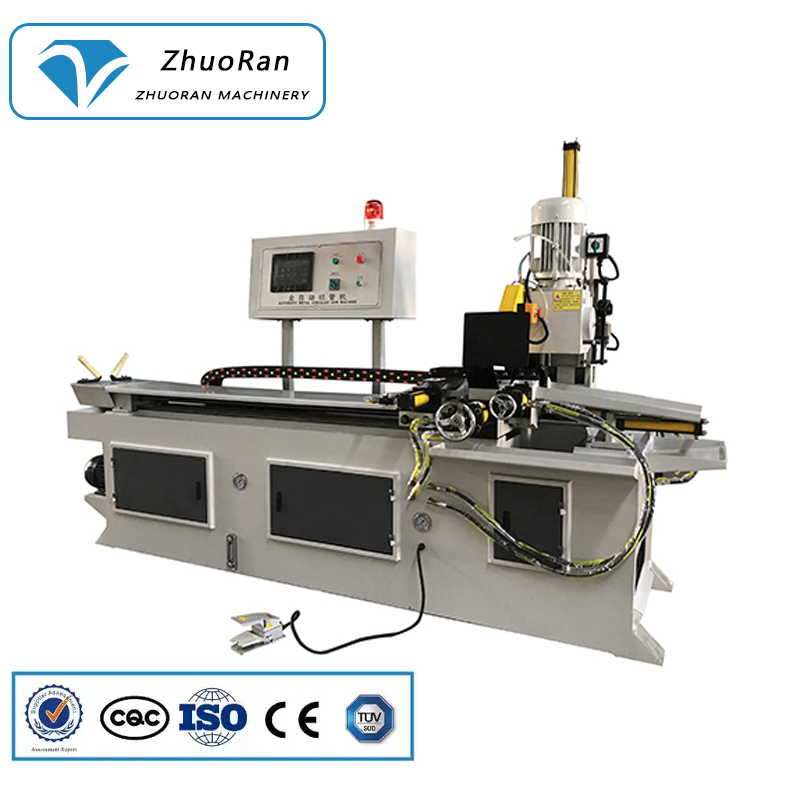

MC350CNC
The fully automatic CNC series metal circular sawing machine is an advanced piece of equipment designed for precision cutting in metalworking applications. Utilizing a servo motor for feeding, this machine ensures consistent and reliable performance, significantly enhancing the accuracy of each cut. With a feeding accuracy of up to ±0.05 mm, it delivers highly precise results, making it ideal for industries where tolerances are critical.
Equipped with a sophisticated PLC (Programmable Logic Controller) control system, the machine allows for easy programming and operation. This user-friendly interface enables operators to set parameters quickly, monitor performance in real-time, and make adjustments as needed.
Item/model | MC315CNC | MC350CNC | MC425CNC | |
Main Driver Motor | 2.4/3kw | 4.5/5.5kw | 4.5/5.5kw | |
Spindle speed | 80/160RPM | 60/120RPM | 30/60RPM 60/120RPM | |
Clamping ViSe | Left and right/up and down | Left and right/up and down | Left and right/up and down | |
Collant Pump Motor | 40W | 40W | 40W | |
Maximum clamp | 120mm | 120mm | 120mm | |
Saw Blade Size
|
Diameter | Φ300mm | Φ350mm | Φ400mm |
孔径Bore | Φ32mm | Φ32mm | Φ32mm | |
销孔Pin Storke | 2*Φ11*PCD63mm | 2*Φ11*PCD63mm | 2*Φ11*PCD63mm | |
Feeding Length | 1200mm | 1200mm | 1200mm | |
Feeding Vise | Servo motor | Servo motor | Servo motor | |
Servo motor power | 1kw | 1kw | 1kw | |
Hydraulic Pump Motor Power | 2.2kw | 2.2kw | 2.2kw | |
Maximum oil pressure | 70kg | 70kg | 70kg | |
Machine dimensions(L×W×H) |
2860*1100*2000mm | 2860*1100*2000mm | 2860*1100*2000mm | |
Machine weight | 1200kg | 1300kg | 1400kg |
