Product Details

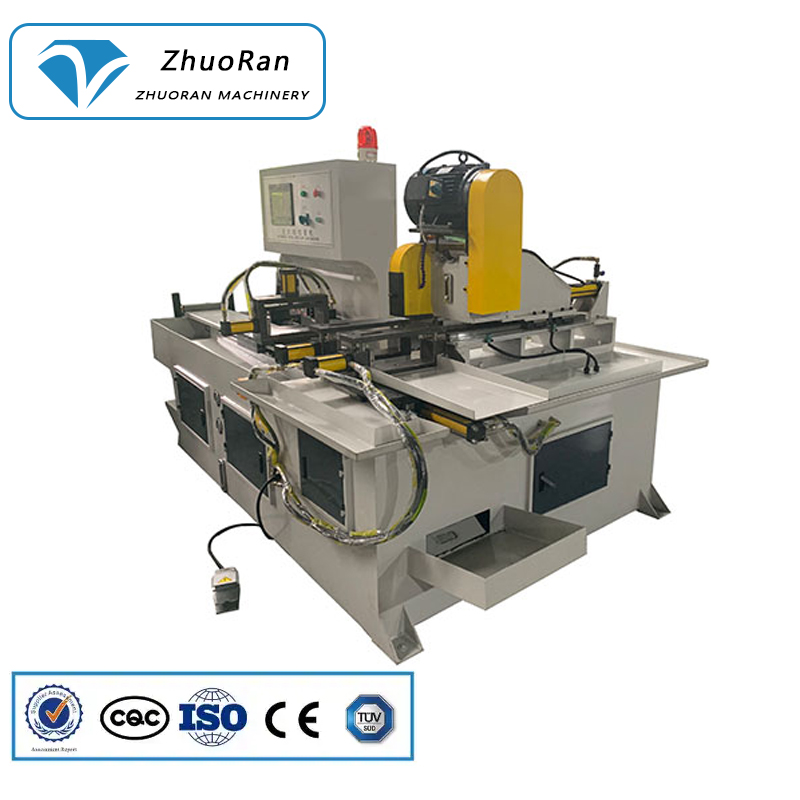

MC425CNC-HQ

The fully automatic CNC series metal circular sawing machine is an advanced piece of equipment designed for precision cutting in metalworking applications. Utilizing a servo motor for feeding, this machine ensures consistent and reliable performance, significantly enhancing the accuracy of each cut. With a feeding accuracy of up to ±0.05 mm, it delivers highly precise results, making it ideal for industries where tolerances are critical.

Equipped with a sophisticated PLC (Programmable Logic Controller) control system, the machine allows for easy programming and operation. This user-friendly interface enables operators to set parameters quickly, monitor performance in real-time, and make adjustments as needed.

Item/model MC425CNC-HQ
Main Driver Motor 4.5/5.5kw
Spindle speed 30/60RPM 60/120RPM
Clamping ViSe Left and right/up and down
Collant Pump Motor 90W


Clamp size (long X wide X high)

280*115*100mm


Saw Blade Size



Diameter Φ450mm
Bore Φ32mm
Pin Storke 2*Φ11*PCD63mm
Feeding Length

(can be customized lengthening)

1500mm
Feeding Vise Servo motor
Servo motor power 1.5kw
Hydraulic Pump Motor Power 2.2kw
Maximum oil pressure 70kg


Machine dimensions(L×W×H)

3800*2000*1800mm
Machine weight 1900kg
