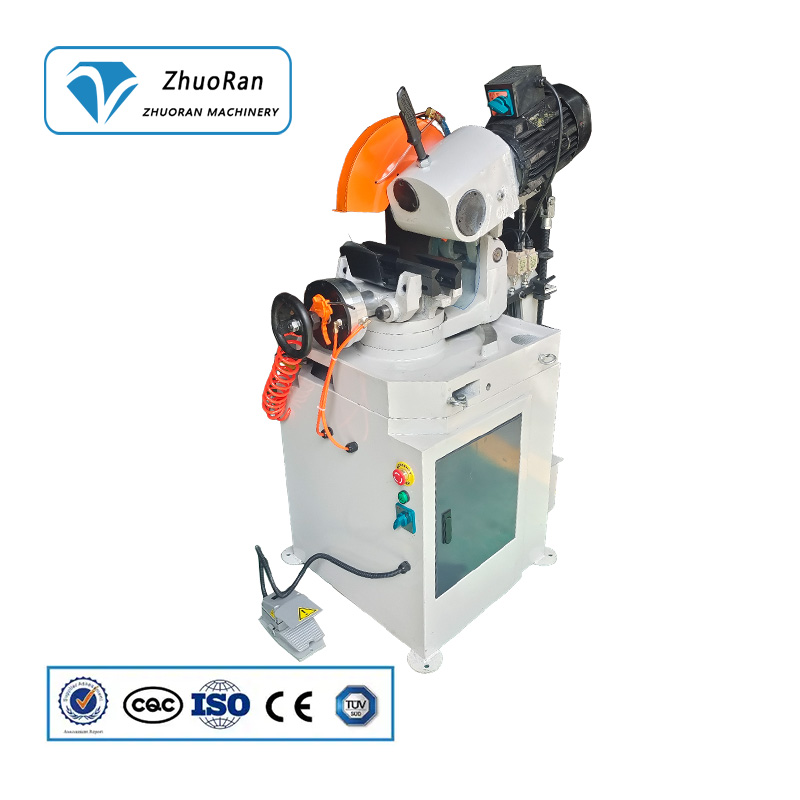

The 315 manual and pneumatic pipe cutting machine is a versatile tool designed for efficiently cutting various types of pipes. The manual version allows operators to control the cutting process, offering flexibility and precision when working with different materials and thicknesses.
It is ideal for smaller workshops or tasks requiring mobility and simple operation. On the other hand, the pneumatic version utilizes compressed air to automate the cutting process, significantly increasing speed and reducing labor intensity.
MC-275 series
|
MC-315 series
|
||
Motor power
|
Double speed 2/2.4KW
|
Double speed 2.4/3KW
|
|
Spindle speed
|
A
|
RPM60/120
|
RPM60/120
|
B
|
RPM60/120
|
RPM60/120
|
|
Saw Blade Size
|
High speed steel saw blade
|
||
Diameter250/275mm
|
Diameter250/300/315mm
|
||
BoreΦ32mm
|
BoreΦ32mm
|
||
Pin Storke 2*11*PCD63mm
|
Pin Storke 2*11*PCD63mm
|
||
Cooling water pump
|
40W
|
40W
|
|
Using compressed air
|
B
|
B
|
|
6-8kg/cm2(120L/Min)
|
6-8kg/cm2(120L/Min)
|
