Product Details

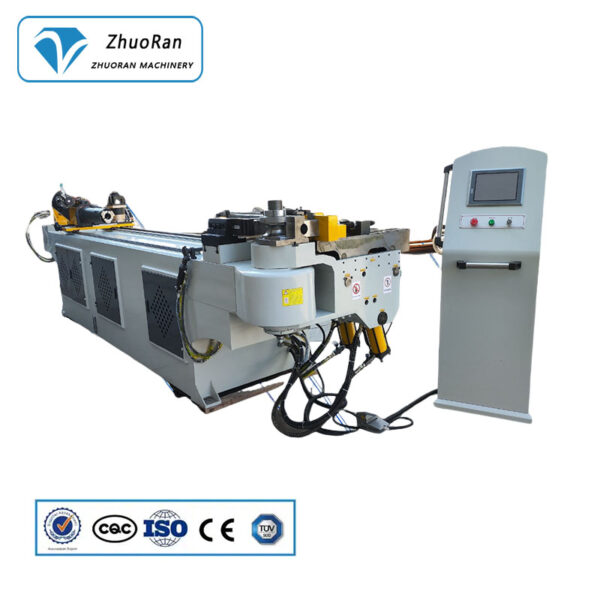

DW89CNC
Maximum bending diameter 89x2mm
Left and right bending, multi radius and multi stack (can be customized upon request)
Bending with or without mandrel (can be customized upon request)
|
Product paramenters
Take model size CNC as the reference standard.
|
|||
|
Model
|
DW89CNC-2/3A-1S
|
DW89CNC-2/3A-2S
|
DW89CNC-2/3A-3S
|
|
CNC / Full Automatic 2/3A
|
Hydraulic/Electric Bending 1S:1 Stack
|
Hydraulic/Electric Bending 1S:1 Stack
|
Hydraulic/Electric Bending 1S:1 Stack
|
|
Max. Bending Capacity
|
89 (2.5″)×4mm
|
89 (2.5″)×4mm
|
89 (2.5″)×4mm
|
|
Bending Degree
|
0-190°
|
0-190°
|
0-190°
|
|
Bending Radius
|
30-300mm (for machine)
|
30-300mm (for machine)
|
30-300mm (for machine)
|
|
Min Bending Radius
|
R≥1.2D (for pipe)
|
R≥1.2D (for pipe)
|
R≥1.2D (for pipe)
|
|
Mandrel Length
|
3800mm(can be customized)
|
3800mm(can be customized)
|
3800mm(can be customized)
|
|
Max. Bending Speed
|
80°/s
|
80°/s
|
80°/s
|
|
Max. Rotating Speed
|
180°/s
|
180°/s
|
180°/s
|
|
Max. Feeding Speed
|
800mm/s
|
800mm/s
|
800mm/s
|
|
Bending Accuracy
|
±0.1°/±0.05°
|
±0.1°/±0.05°
|
±0.1°/±0.05°
|
|
Rotating Accuracy
|
±0.05°
|
±0.05°
|
±0.05°
|
|
Feeding Accuracy
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
