Product Details

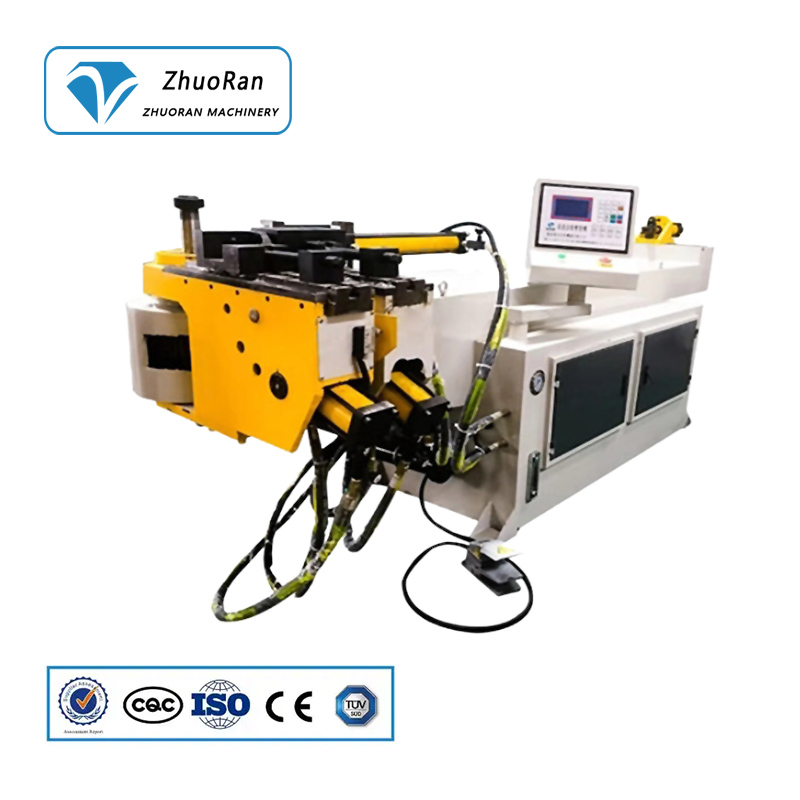

DW63NC

The semi-automatic hydraulic pipe bender is a sophisticated mechanical device specifically designed for the purpose of bending metal pipes with precision and efficiency. Unlike fully automatic hydraulic pipe bending machines, which operate independently with minimal human intervention, the semi-automatic variant requires a certain degree of manual input during the operation process.

This feature allows operators to maintain control over the bending process, ensuring that each bend meets specific requirements and tolerances. The semi-automatic machine effectively combines advanced hydraulic and control systems, which not only enhance production efficiency but also significantly reduce the amount of manual labor required.

Main specifications The unit Models:DW63NC Note:



1. The minimum bending radius is based on the pipe diameter

2. The maximum bending radius can be determined according to customer requirements
3. The maximum length of core penetration can be according to customer requirements



Maximum bending diameter ×Wall thickness. mm Φ63×2
Maximum bending radius. mm R300
Minimum bending radius. mm R≥1.5D
Maximum bending Angle. Degree 190
Standard core length. mm 2600
Control system. Microcomputer control
Number of elbow allowed for pipe fitting Unit 16
Number of parts that can be stored. Unit 16×16
Oil motor power. KW 7.5
Maximum system pressure. Mpa 12
Hydraulic system control. Solenoid valve
Tank volume L 220
Machine dimensions mm 3300×1000×1300
Machine weight Kg 1000
