DW38NC

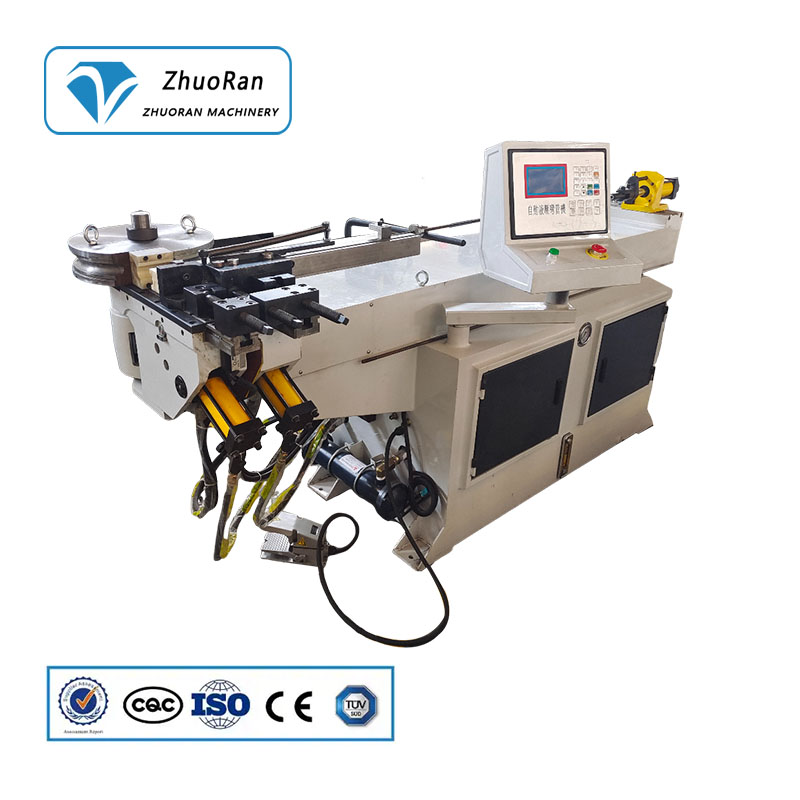

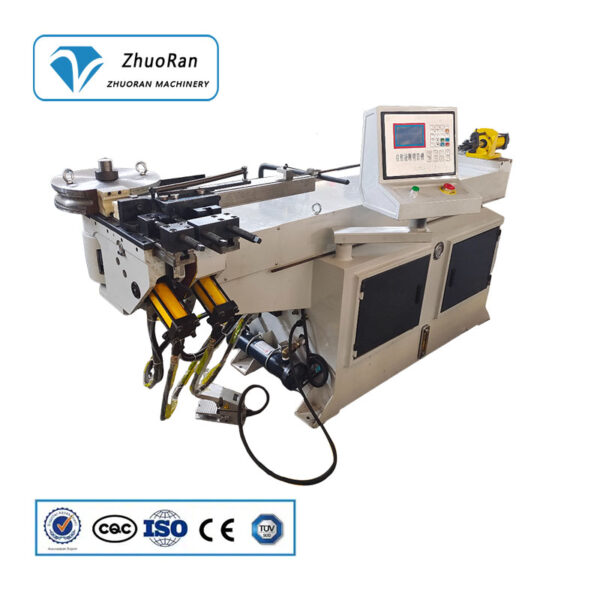

The semi-automatic hydraulic pipe bender is a sophisticated mechanical device specifically designed for the purpose of bending metal pipes with precision and efficiency. Unlike fully automatic hydraulic pipe bending machines, which operate independently with minimal human intervention, the semi-automatic variant requires a certain degree of manual input during the operation process.
This feature allows operators to maintain control over the bending process, ensuring that each bend meets specific requirements and tolerances. The semi-automatic machine effectively combines advanced hydraulic and control systems, which not only enhance production efficiency but also significantly reduce the amount of manual labor required.
Main specifications | Unit | Models:DW38NC | Note:
1. The minimum bending radius is based on the pipe diameter 2. The maximum bending radius can be determined according to customer requirements
|
|
Maximum bending diameter ×Wall thickness. | mm | Φ38×2 | ||
Maximum bending radius. | mm | R200 | ||
Minimum bending radius. | mm | R≥1.5D | ||
Maximum bending Angle. | Degree | 190 | ||
Standard core length. | mm | 1600 | ||
Control system. | Microcomputer control | |||
Number of elbow allowed for pipe fitting | Unit | 16 | ||
Number of parts that can be stored. | Unit | 16×16 | ||
Oil motor power. | KW | 4 | ||
Maximum system pressure. | Mpa | 12 | ||
Hydraulic system control. | Solenoid valve | |||
Tank volume | L | 110 | ||
Machine dimensions | mm | 2500×750×1250 | ||
Machine weight | Kg | 600 |
