Product Details

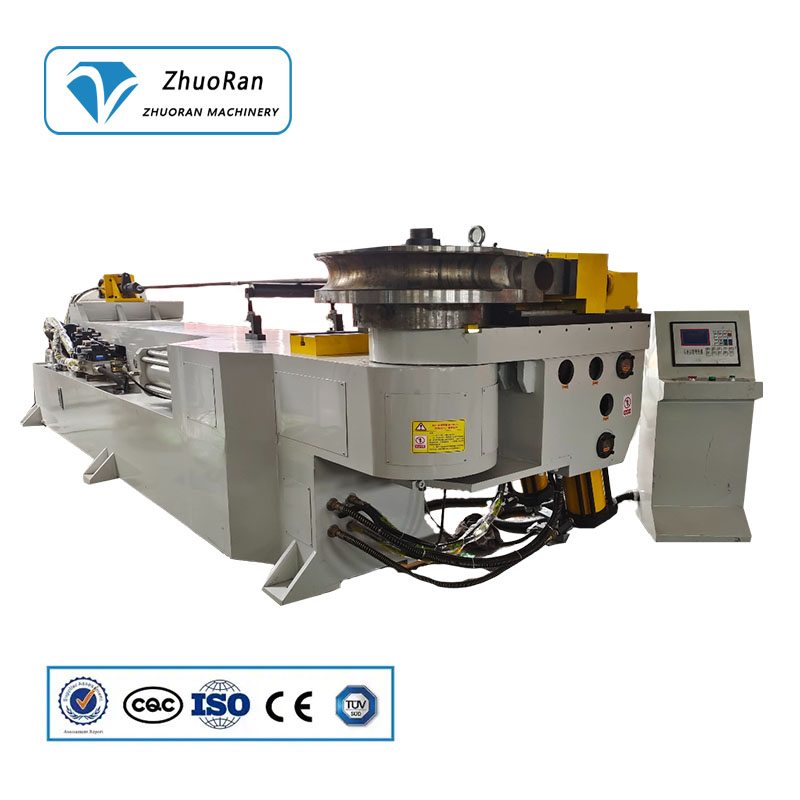

DW130NC

The semi-automatic hydraulic pipe bender is a sophisticated mechanical device specifically designed for the purpose of bending metal pipes with precision and efficiency. Unlike fully automatic hydraulic pipe bending machines, which operate independently with minimal human intervention, the semi-automatic variant requires a certain degree of manual input during the operation process.

This feature allows operators to maintain control over the bending process, ensuring that each bend meets specific requirements and tolerances. The semi-automatic machine effectively combines advanced hydraulic and control systems, which not only enhance production efficiency but also significantly reduce the amount of manual labor required.

Main specifications The unit Models:DW130NC Note:



1. The minimum bending radius is based on the pipe diameter

2. The maximum bending radius can be determined according to customer requirements
3. The maximum length of core penetration can be according to customer requirements



Maximum bending diameter ×Wall thickness. mm Φ130×10
Maximum bending radius. mm R520
Minimum bending radius. mm R≥1.5D
Maximum bending Angle. Degree 190
Standard core length. mm 4500
Control system. Microcomputer control
Number of elbow allowed for pipe fitting Unit 16
Number of parts that can be stored. Unit 16×16
Oil motor power. KW 22
Maximum system pressure. Mpa 14
Hydraulic system control. Solenoid valve
Tank volume L 350
Machine dimensions mm 6500×1750×1450
Machine weight Kg 7500
