How to Calculate a Bend Radius: A Comprehensive Guide
When working with pipes, tubes, sheet metal, or wire, one of the most critical factors in fabrication is determining the bend radius. The tube radius is the smallest radius a material can be bent without causing deformations, cracks, or structural weaknesses. Understanding how to calculate the bending radius properly ensures durability, functionality, and safety in various mechanical and industrial applications.

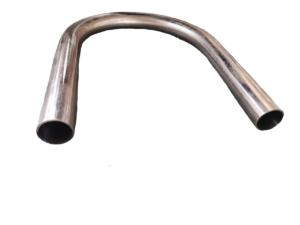

What Is a Bend Radius?
The bend radius refers to the inside curvature of a tube in a material. It determines how tightly a material can be bent before experiencing stress-related failures. If the radius is too small, the material may crack, warp, or weaken. If it’s too large, it may not meet design specifications.
There are two main types of tube radius measurements:
- Inside tube Radius (IR) – The radius on the inner surface of the tube.
- Outside Bend Radius (OR) – The radius on the outer surface of the tube.
Most calculations refer to the inside bend radius since it determines the minimum allowable curvature.
Factors Affecting Bend Radius Calculation
Several variables influence the correct bending radius for a material:
- Material Type – Metals like aluminum, steel, and copper have different flexibility and elasticity properties.
- Material Thickness – Thicker materials require larger bend radii to prevent cracking.
- Bend Angle – A sharper tube (e.g., 90° vs. 45°) may require adjustments in the radius.
- Material Hardness/Temper – Softer materials can handle tighter bends than hardened ones.
- Manufacturing Process – Press braking, roll bending, and CNC tube bending have different radius tolerances.
How to Calculate Bend Radius: Step-by-Step
The basic formula to determine the minimum bend radius is:
Minimum tube Radius (R) = Material Thickness (T) × Bend Factor (K)
Where:
- R = Minimum inside tube radius
- T = Material thickness
- K = Bend factor (varies by material and application, typically between 0.5 and 4)
Step 1: Determine Material Specifications
Check manufacturer guidelines or material data sheets to find:
- Tensile strength
- Ductility
- Recommended bend factor (K)
For example:
- Aluminum (Soft): K = 0.3 to 1.0
- Steel (Mild): K = 0.5 to 2.0
- Stainless Steel: K = 1.0 to 4.0
Step 2: Measure Material Thickness (T)
Use a caliper or micrometer if necessary.
Step 3: Apply the Formula
For 0.1-inch-thick aluminum sheet (K = 1.0):
- Minimum Bend Radius = 0.1 × 1.0 = 0.1 inches
For 0.25-inch-thick stainless steel (K = 3.0):
- Minimum Bend Radius = 0.25 × 3.0 = 0.75 inches
Advanced Calculation Methods
For more precision, engineers use bend deduction, bend allowance, and K-factor based on material elongation and springback.
- Bend Allowance (BA) – The material needed to achieve a bend without distortion.
- Formula: BA = [ (π/180) × Bend Angle × (Inside Radius + (K × Thickness)) ]
- Bend Deduction (BD) – The difference between flange lengths before and after bending.
These require CAD software or bend tables for highly accurate fabrication.
Case Study: tube Radius in Automotive Exhaust Pipes
An automotive manufacturer needed to produce stainless steel exhaust pipes with consistent 90° bends. The material thickness was 0.062 inches, and the required inside tube radius was 1.5 inches.
Problem:
Initial bending attempts resulted in cracking due to an incorrect radius.
Solution:
Recalculating using K = 3.0 (for stainless steel):
- Minimum Bend Radius = 0.062 × 3.0 = 0.186 inches
Since the design required 1.5 inches, well above the minimum, no cracks occurred. Using a rotary draw bender ensured precision.
Result:
- No material failures
- Consistent bends
- Lower scrap rates
Common Mistakes When Calculating tube Radius
- Ignoring Material Properties – Assuming one K-factor fits all metals.
- Underestimating Springback – Materials relax slightly after bending.
- Overlooking Tooling Constraints – Bending machines have limitations.
- Using the Wrong Formula – Simplified calculations may not apply to all cases.
Finally
Understanding how to calculate a tube radius is essential for precision fabrication, whether you’re working with sheet metal, piping, or wiring. By considering material properties, thickness, and bending techniques, you can avoid structural failures and produce high-quality components.
For critical applications, always test a small sample before full-scale production. Advanced methods like bend allowance and CAD modeling further refine accuracy.
By mastering these calculations, manufacturers, engineers, and fabricators can ensure stronger, longer-lasting bends in their products.
