How to Bend Stainless Steel Pipe: A Comprehensive Guide
Stainless steel pipes play an invaluable role in numerous industries, including construction, automotive, marine, and more. When you need to bend stainless steel pipe, the process requires careful consideration of material properties, equipment selection, and the correct bending method to ensure optimal results. Bending stainless steel differs from bending other metals due to its inherent strength and resistance to corrosion, making it both a challenge and a worthy endeavor for high-quality, durable outcomes. In this comprehensive guide, we will explore everything you need to know about bending stainless steel pipe—covering the types of stainless steel, common bending methods, essential tools, safety considerations, best practices, troubleshooting tips, and a real-world example to illustrate the process in detail. By the end, you’ll be equipped with the knowledge and confidence to successfully bend stainless steel pipe for your specific project requirements.
1. Understanding Stainless Steel: Composition and Properties
Before diving into the methods to bend stainless steel pipe, it is crucial to understand what makes stainless steel unique.
1.1 What Is Stainless Steel?
Stainless steel is an alloy primarily composed of iron, chromium, and other elements such as nickel, manganese, and molybdenum. Chromium, usually at a minimum concentration of around 10.5%, confers corrosion resistance, as it forms a thin yet durable layer of chromium oxide on the surface. This passive layer prevents further oxidation, which is why stainless steel remains rust-free under many conditions.
1.2 Types of Stainless Steel
There are several types of stainless steel, categorized based on their microstructure:
- Austenitic Stainless Steel (e.g., 304, 316): Contains high levels of chromium and nickel. This is the most common type, offering excellent corrosion resistance and good formability. 304 stainless steel is particularly popular due to its versatility, while 316 provides enhanced resistance to chloride corrosion.
- Ferritic Stainless Steel (e.g., 430): Contains chromium but has little or no nickel. Known for moderate corrosion resistance and good resistance to stress corrosion cracking. Typically used in automotive exhaust systems and appliances.
Martensitic Stainless Steel (e.g., 410): Contains chromium and typically has higher carbon content. Martensitic stainless steels are known for high strength and hardness but are less corrosion-resistant compared to austenitic grades.
- Duplex Stainless Steel (e.g., 2205): A combination of austenitic and ferritic structures, offering higher strength and better corrosion resistance in certain environments.
- Precipitation Hardening Stainless Steel (e.g., 17-4 PH): Contains additional elements like copper, aluminum, and niobium to enhance hardness and strength through heat treatment.
1.3 Mechanical Properties Relevant to Bending
When you bend stainless steel pipe, material properties such as yield strength, tensile strength, and elongation percentage come into play:
- Yield Strength: The point at which the steel begins to deform permanently. Higher yield strength can make bending more difficult, requiring greater force.
- Tensile Strength: The maximum stress the pipe can withstand while being stretched or pulled before breaking.
- Elongation: The ability of the material to stretch before fracture. A higher elongation value indicates better formability.
Understanding these properties helps you select the right method, equipment, and approach to bend stainless steel pipe effectively.
2. Why Bend Stainless Steel Pipe? Common Applications
Stainless steel pipe bending is a valuable technique used in various scenarios. Here are some typical applications:
2.1 Construction and Architecture
In construction and architectural projects, stainless steel pipes are frequently employed for handrails, guardrails, and decorative structural features. The combination of durability, rust resistance, and sleek appearance makes stainless steel an ideal choice for both interior and exterior applications.
2.2 Automotive and Transportation
Bending stainless steel pipe is commonplace in automotive exhaust systems, roll cages, and specialized frameworks. Stainless steel’s ability to withstand high temperatures and corrosive exhaust gases makes it well-suited for these applications. Furthermore, custom builds often require unique bends to fit specific vehicle designs.
2.3 Food and Beverage Industry
Stainless steel piping in the food and beverage industry ensures a sanitary environment for liquids or gases. Bending allows for efficient use of space in facilities, smoother flow paths, and fewer potential leak points by reducing the number of joint connections.
2.4 Marine and Offshore Installations
Stainless steel’s corrosion-resistant attributes make it the go-to choice for many marine applications, including boat railings, ladders, and other structural components. Pipe bending is required to achieve smooth, aerodynamic lines that enhance functionality and aesthetics on decks and offshore platforms.
3. Key Factors That Affect Stainless Steel Pipe Bending
Bending stainless steel pipe effectively is contingent upon various mechanical and process-oriented parameters. Understanding these influences can help avoid structural compromises and aesthetic imperfections.
3.1 Material Grade
As mentioned, different stainless steel alloys have distinct mechanical properties. While 304 and 316 stainless steels are generally preferred for bending due to their good ductility, higher-strength grades like 2205 duplex stainless steel might necessitate specialized equipment or methods.
3.2 Pipe Diameter and Wall Thickness
Larger diameters and thicker walls require stronger bending equipment and more force. The wall thickness also influences the minimum bend radius—thicker walls can be more resistant to buckling but require greater force, whereas thinner walls risk collapse if pushed beyond certain limits.
3.3 Bend Radius
The bend radius is a key specification in determining how tight or broad the bend is. A smaller bend radius typically demands more force and poses a higher risk of distortion or wrinkling. Industries often specify a minimum recommended bend radius for certain pipe sizes and materials to preserve structural integrity.
Proper planning and awareness of these key factors reduce the likelihood of errors and ensure that the finished product meets performance and aesthetic requirements. Having established the foundational considerations, we’ll now examine the common bending methods available for stainless steel pipes.
4. Essential Tools and Equipment to Bend Stainless Steel Pipe
When you decide to bend stainless steel pipe, having the appropriate tools and equipment is critical. Investing in the correct setup not only ensures quality bends but also minimizes the risk of damage and waste.
4.1 Bending Machine or Apparatus
The machine type depends on your chosen method:

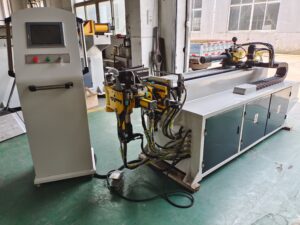

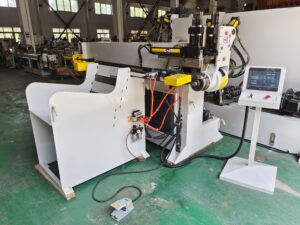

- Rotary Draw Bending Machine: For complex or high-precision bends.
- Press Brake: Often used in press bending.
- Three-Roll Bending Machine: Ideal for forming arcs or large-radius bends.
- Induction Bending Machine: Specialized equipment for heating and bending.
4.2 Dies and Tooling
- Bend Die: Shapes the desired curve around which the pipe is drawn. Must match both the pipe diameter and bend radius.
- Clamp Die: Holds the pipe in place while bending.
- Pressure Die: Applies force against the pipe to hold it firmly.
- Wiper Die (optional in rotary draw bending): Prevents wrinkles on the inside of the bend.
- Mandrel (optional): Inserted into the pipe to maintain the round cross-section, preventing collapse.
Securing the right combination of machinery, tooling, measuring devices, and safety gear is the foundation of a successful stainless steel pipe bending operation. Up next, we detail a step-by-step guide that will walk you through bending stainless steel pipes systematically.
